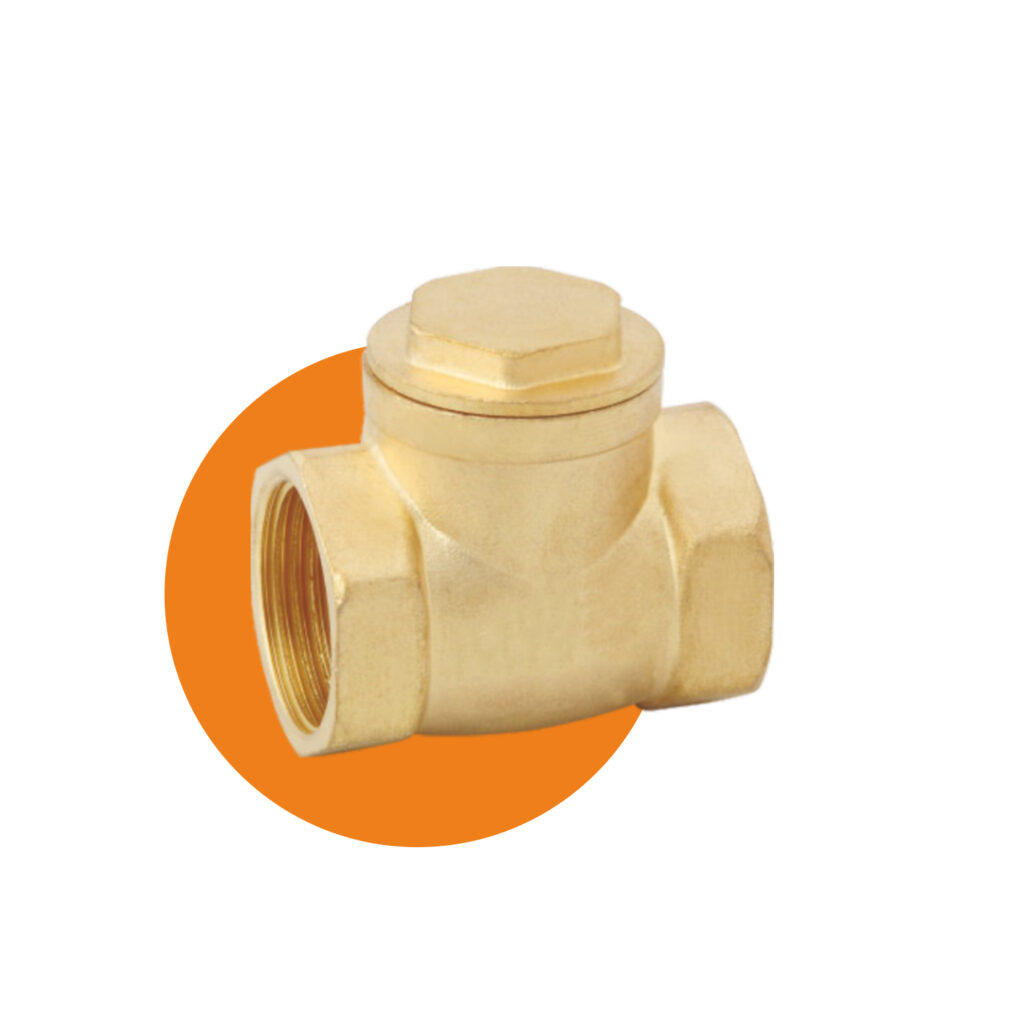

BRASS CHECK VALVE Horizontal RB-201
Features:
- Screwed Female Ends
- Meant for Horizontal Lines Only.
- Permits flow in one direction
- Forged Brass Body
- Available size 15mm to 50mm

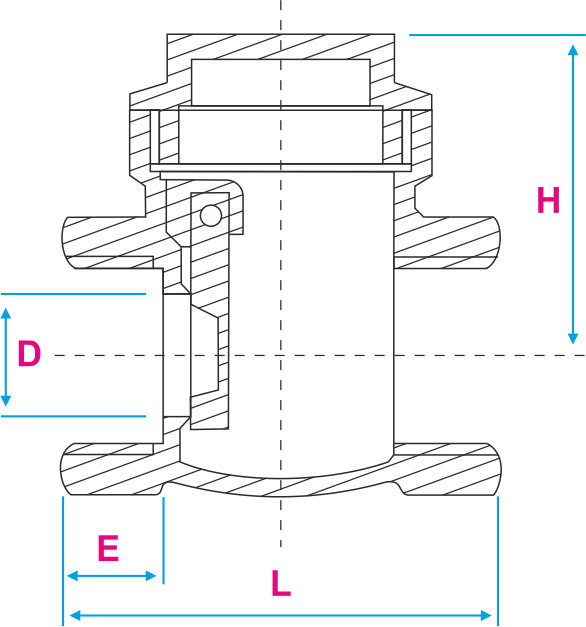

| DN | SIZE | D | L | H | G |
|---|---|---|---|---|---|
| 15 | 1/2' | 13.5 | 45 | 33 | 11 |
| 20 | 3/4' | 18 | 49 | 37 | 12 |
| 25 | 1' | 22 | 59 | 40 | 14 |
| 25 | 1'(H) | 22 | 59 | 40 | 14 |
| 32 | 1 1/4' | 28 | 65 | 46 | 15 |
| 40 | 1 1/2' | 32 | 75 | 52 | 17 |
| 50 | 2' | 42 | 85 | 60 | 19 |
